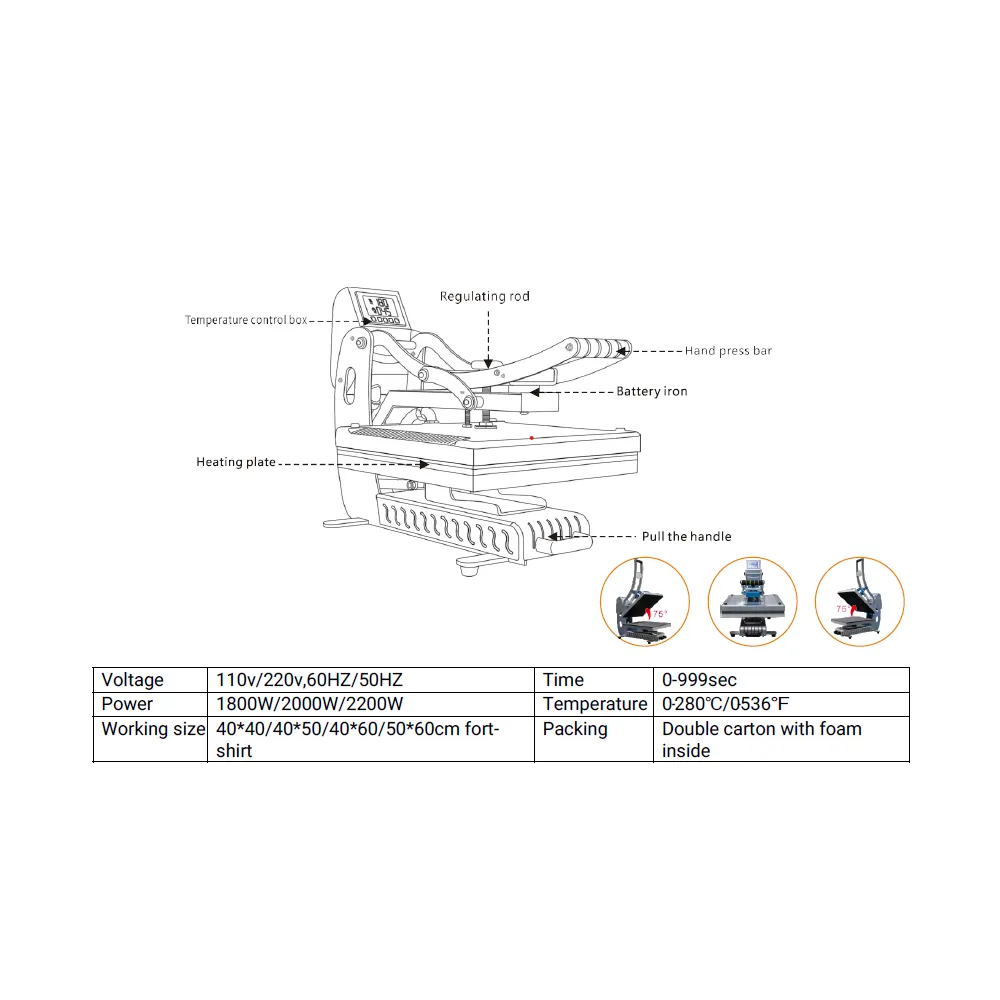

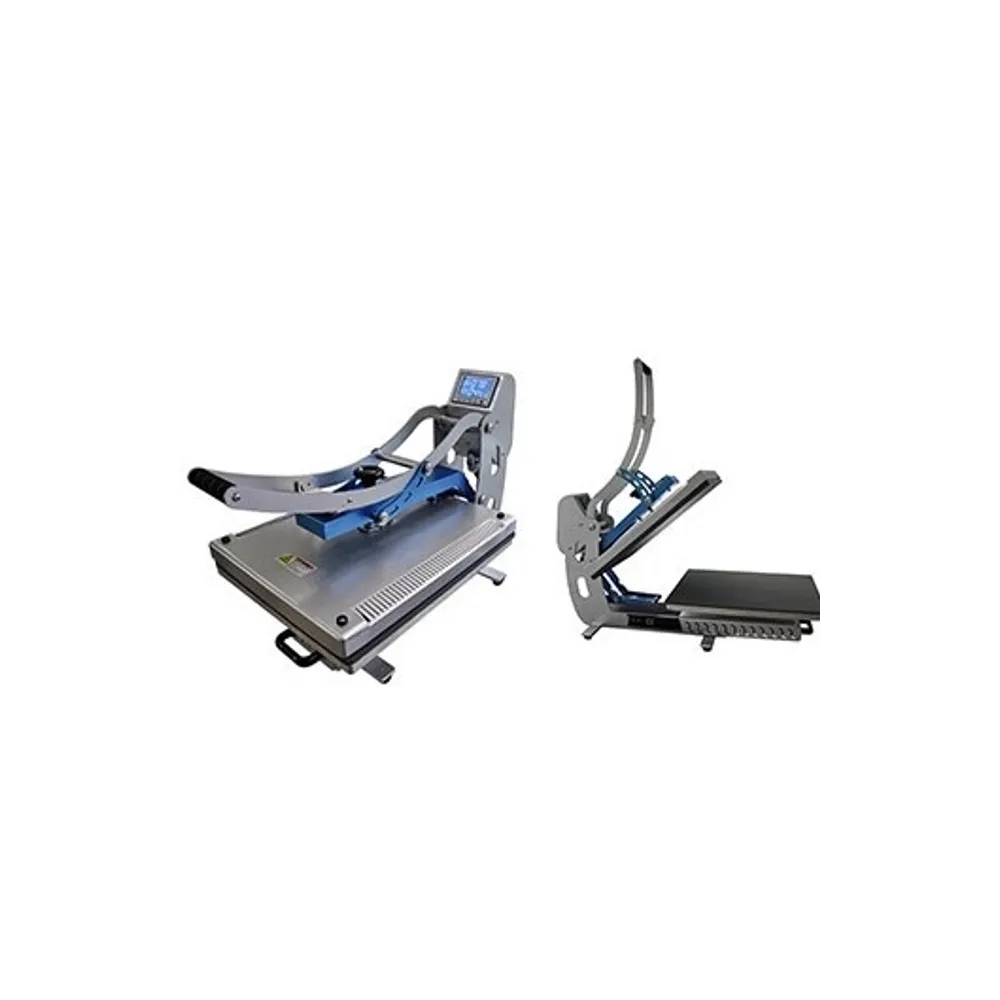

Semi-automatic press 40x60

Integrated intelligent microcomputer control with LED for temperature/time, high precision, automatic temperature tracking function (accuracy ±1 °C).
The heating wire and heating plate are made from a single cast block, ensuring safety, durability and even heat distribution.
Adopted special ultra-precision piping technology, which effectively ensures the uniformity and stability of the heating plate temperature.
Electronic time control, with acoustic signal at the end of the process.
Flexible switching between °C and °F (B).

Usage

1. 1. Connect the power cord. Turn on the main switch and press the power button. The controller will then enter operating mode.
      (Make sure the protective earth wire is reliably connected to the machine)

   2. Set the temperature (usually 180–200°C)
      ◆ Temperature setting: Press the setting button once; the temperature indicator will start flashing. Press “+” or “–” to set the desired temperature, then press the setting button twice to confirm.

   3. Set the time (usually around 40–60 seconds)
      ◆ Press the setting button once; the time indicator will start flashing. Press “+” or “–” to set the desired time, then press the setting button twice to confirm.

   4. When the temperature reaches the set value, place the garment on the work plate, then place the transfer paper (the side with the design facing the garment), lower the lever until it is completely closed.
      (Note: The lever may bend if the pressure exceeds 30kg)

   5. When the time is up and you hear the “BEEP”, the heating plate will open automatically: the transfer process is complete.

   6. If the transfer paper needs to be removed cold , use an eraser to rub the transfer paper, wait 5–10 seconds, then remove it.

   7. If the transfer paper is to be heat removed , remove it immediately after the transfer is complete.
